| Features |
|
| High Accuracy |
|
| Flow Range |
Diameter from 15mm to 100mm |
| Turbine MOC |
SS304, SS316 |

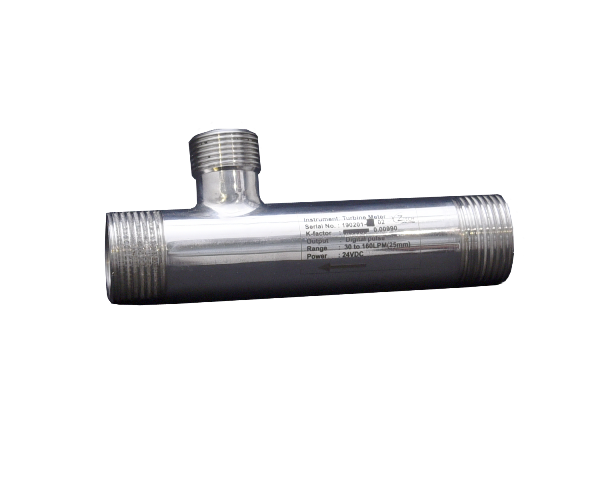

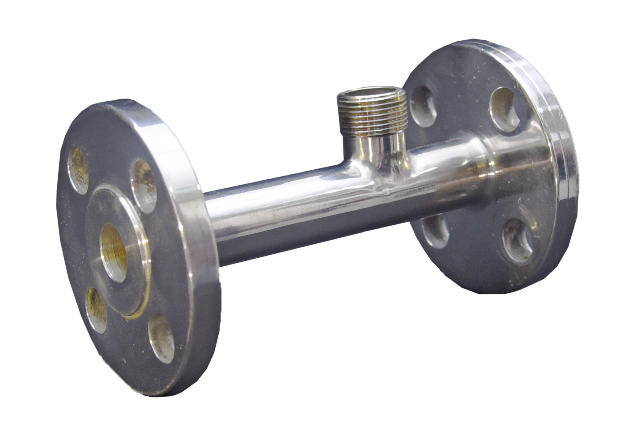

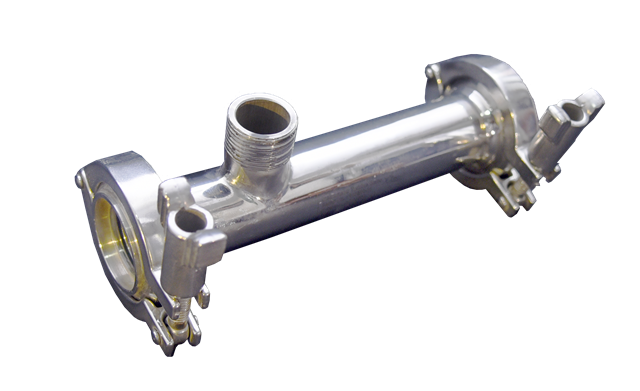

| End Connection |
Flange, Threaded, Triclover |
| Electronic Parameters |
|
| Display |
High Resolution Graphical LCD (64*128) with all flow Parameters |
| Flow rate |
5 Digit and auto adjust with line size |
| Flow Totalizer |
10Digit Totalizer Value, Real Time Clock, Tag Id |
| Bargraph |
Corresponds To 0-100% Flowrate |
| Com Port |
RS232 / RS485 Modbus RTU or GPRS Connectivity |
| Pulse to Liter Ratio |
Field Programmable |
| Flow Unit |
LPM, LPH, LPS, M3. |
| Analog Output |
4- 20madc Opto & Galvanic Isolated Retransmission |
| Dimension |
96(W) * 96(H) * 110mm, Mounting: Panel |
| Damping Time |
Selectable (User Configurable) |
| Extra feature |
Internal Data Logging, 15000data (Time,Date,Flow,Totalizer),External serial printing,USB output, GSM/GPRS compatible output |
| Application |
- DM Water
- Solvent
- Non Conductive Liquid
- Oil
|
