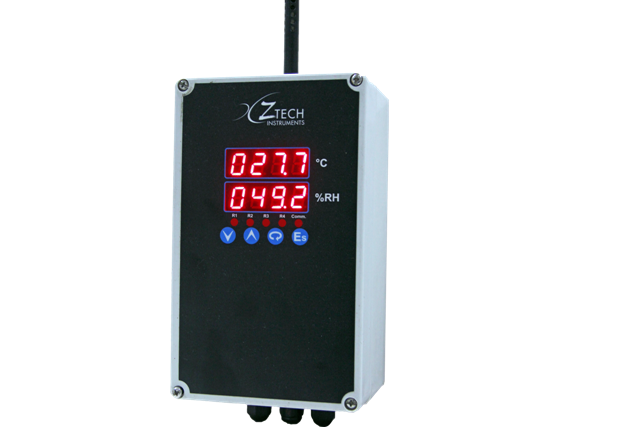

RH/TEMPERATURE DISPLAY (MODEL-ZT506)

Display
  • 2*4 Digit (0.56”)(Channel1: Temperature C, Channel2:rH %)
Input
  • 2*Universal Input (TC, RTD, mA, mV, V, Ω)
Analog Output
  • 2*Isolated 4-20mA Retransmission(600Ω Load Capacity)
  • 2*Isolated 0-10VDC
Alarm 4 Relay Contact(2 Relay/Channel)
Communication Output
  • RS485 Modbus
Accuracy
  • +/-0.1% For Linear Input
  • +/-0.25% For Non Linear Input
Power 90 to 260 VAC,24VDC,12VDC
Enclosure ABS Plastic Moulded, Weather Proof, Flame Proof
Dimension 120(W), 210(H), 90(D) for ABS plastic enclosure, to check for other options
Mounting Wall
Extra Features Compatible to GSM / GPRS System
Application HVAC/ Clean room monitoring/ Pharma Application



DATASHEET:ZT506-RH TEMPERATURE DISPLAY
